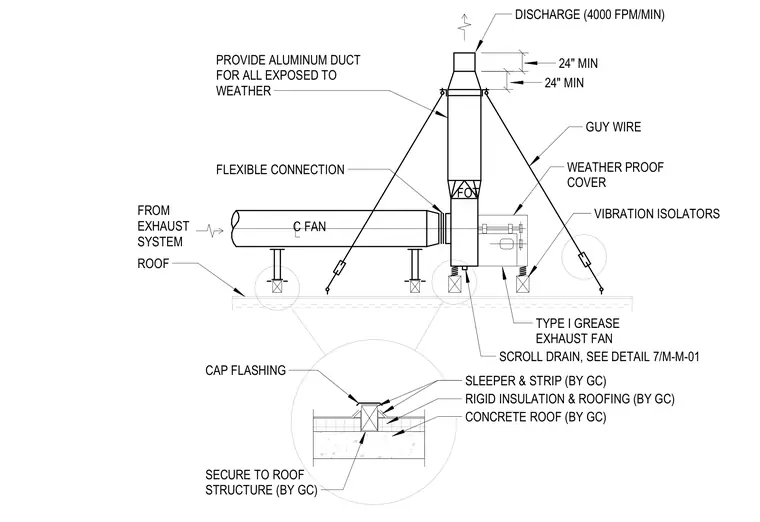

A type I grease exhaust fan mounts to a concrete roof structure over rigid insulation and roofing applied by the general contractor. The fan unit is supported on vibration isolators and connected to the exhaust system via a flexible connection, with aluminum ductwork provided for all sections exposed to weather. Guy wires stabilize the vertical discharge stack, which features a twenty-four-inch minimum discharge clearance. A scroll drain connects at the base of the fan, and a detail inset shows the cap flashing secured over sleepers and strips fastened directly to the roof structure.
C FAN 24" MIN DISCHARGE (4000 FPM/MIN) PROVIDE ALUMINUM DUCT FOR ALL EXPOSED TO WEATHER FLEXIBLE CONNECTION FROM EXHAUST SYSTEM ROOF GUY WIRE WEATHER PROOF COVER VIBRATION ISOLATORS SCROLL DRAIN, SEE DETAIL 7/M-M-01 TYPE I GREASE EXHAUST FAN CAP FLASHING SLEEPER & STRIP (BY GC) RIGID INSULATION & ROOFING (BY GC) CONCRETE ROOF (BY GC) SECURE TO ROOF STRUCTURE (BY GC) FOT 24" MIN
