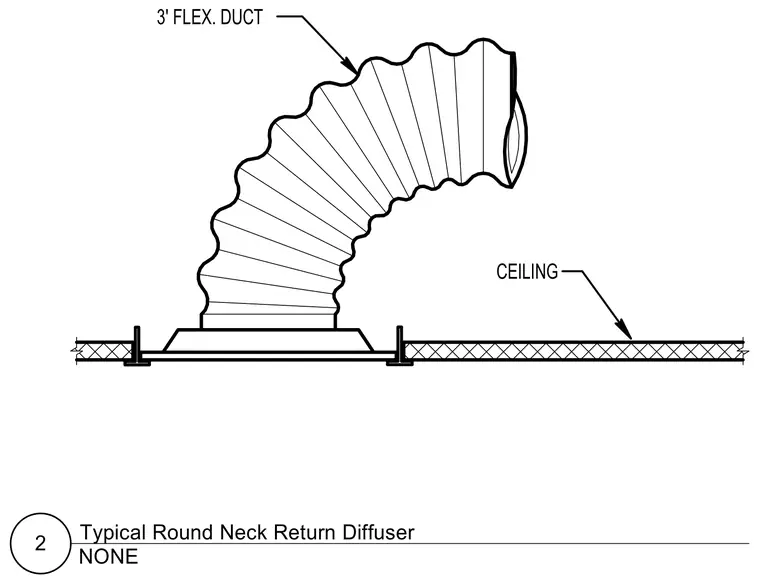

A typical round neck return diffuser is installed flush within a ceiling system and connected to a three-foot flexible duct. The diffuser assembly integrates directly into the ceiling plane using standard support framing.
CEILING 3' FLEX. DUCT NONE 2 Typical Round Neck Return Diffuser
