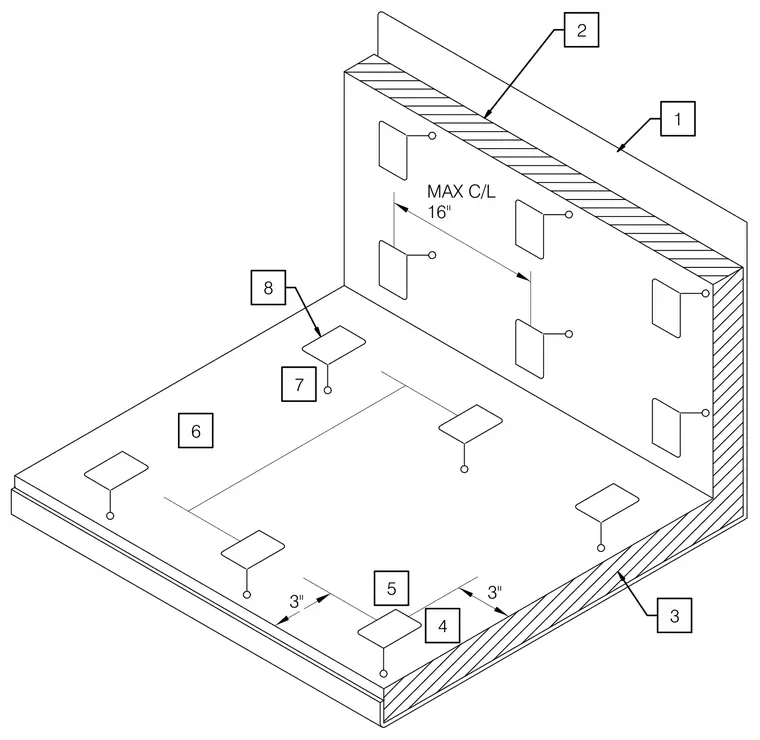

Maximum centerline spacing requirements for support attachments on a formed metal bracket are detailed in this isometric view. Dimension callouts indicate a maximum centerline distance of sixteen inches between fastener locations along the vertical surface, with three-inch edge clearances specified on the horizontal base plate. Numbered callouts identify the component parts of the bent plate assembly and its attachment points.
