Condensing Unit Detail

Materials

Metal (misc.)

Elements

Roofs

Connections

Bolted Connection

About this detail

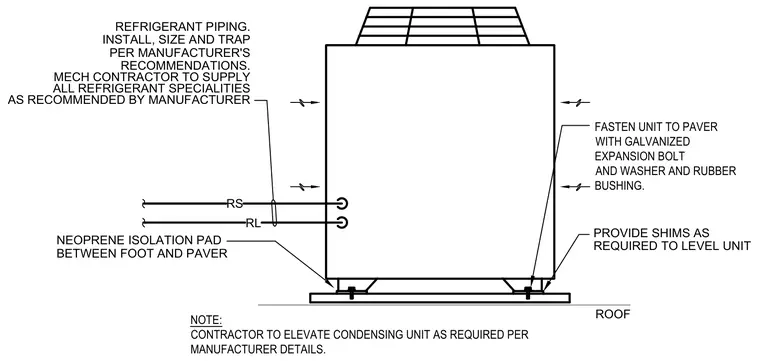

The condensing unit bears on neoprene isolation pads placed between the unit feet and the roof paver. Shims are provided as required to level the unit, and the assembly is fastened to the paver using galvanized expansion bolts with washers and rubber bushings. Refrigerant piping, including liquid and suction lines, connects to the unit and is sized, installed, and trapped per manufacturer recommendations.
