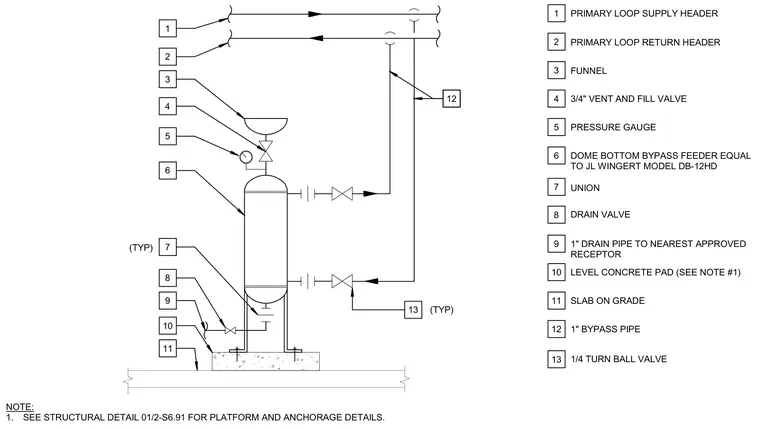

A dome bottom bypass feeder, equal to JL Wingert model DB-12HD, is mounted on a level concrete pad over a slab on grade and tied into primary loop supply and return headers. The feeder incorporates a funnel and a three-quarter-inch vent and fill valve at the top along with a pressure gauge. Piping connections include a one-inch bypass pipe with unions, a drain valve, a one-inch drain pipe routed to the nearest approved receptor, and multiple one-quarter-turn ball valves. Platform and anchorage details reference structural detail 01/2-S6.91.
(TYP) (TYP) 1 2 3 4 5 6 13 7 8 9 10 11 13 12 PRIMARY LOOP RETURN HEADER FUNNEL PRIMARY LOOP SUPPLY HEADER 3/4" VENT AND FILL VALVE DOME BOTTOM BYPASS FEEDER EQUAL TO JL WINGERT MODEL DB-12HD PRESSURE GAUGE NOTE: 1. SEE STRUCTURAL DETAIL 01/2-S6.91 FOR PLATFORM AND ANCHORAGE DETAILS. 1/4 TURN BALL VALVE UNION 1 2 3 4 5 6 13 7 DRAIN VALVE 8 1" DRAIN PIPE TO NEAREST APPROVED RECEPTOR 9 LEVEL CONCRETE PAD (SEE NOTE #1) 10 SLAB ON GRADE 11 1" BYPASS PIPE 12
