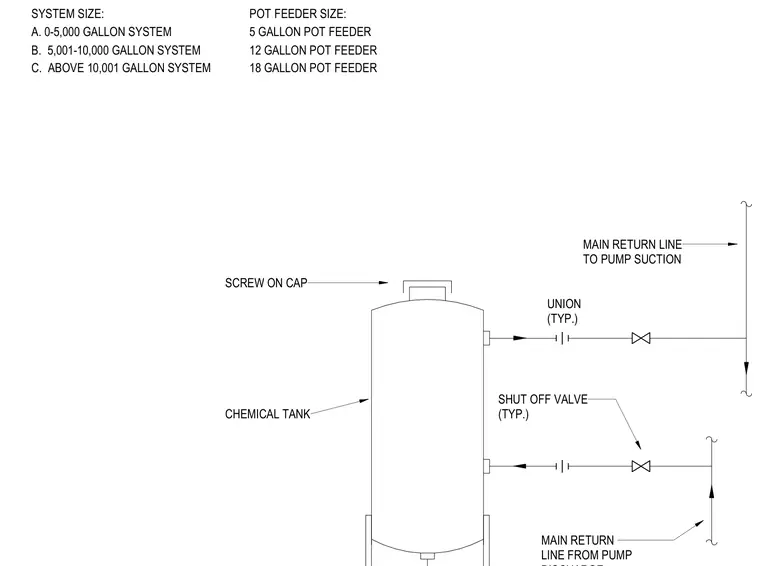

An 18 gallon chemical tank pot feeder connects to the main return line with typical unions and shutoff valves at the pump suction and discharge lines. A screw-on cap provides top access for chemical introduction, and the system sizing schedule correlates pot feeder capacity to total system gallonage.
MAIN RETURN LINE TO PUMP SUCTION A. 0-5,000 GALLON SYSTEM B. 5,001-10,000 GALLON SYSTEM C. ABOVE 10,001 GALLON SYSTEM 5 GALLON POT FEEDER 12 GALLON POT FEEDER 18 GALLON POT FEEDER UNION (TYP.) CHEMICAL TANK SHUT OFF VALVE (TYP.) MAIN RETURN LINE FROM PUMP SCREW ON CAP SYSTEM SIZE: POT FEEDER SIZE:
