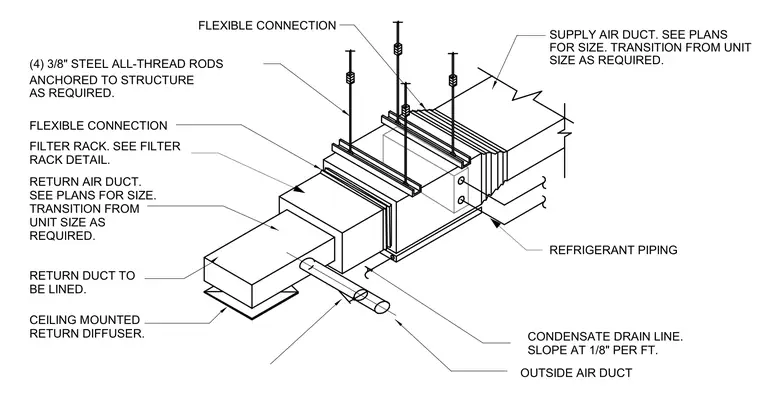

The fan coil unit hangs from the structure via four 3/8-inch steel all-thread rods anchored per requirements. Flexible connections at the supply and return air ducts isolate vibration, with duct sizes and transitions per project plans. The return air duct features a filter rack and internal lining, terminating at a ceiling-mounted return diffuser. Refrigerant piping connects to the unit side, and the condensate drain line maintains a slope of 1/8-inch per foot. An outside air duct connection integrates into the unit assembly.
