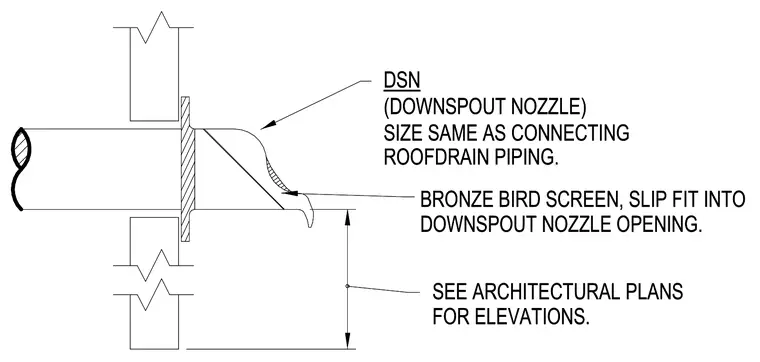

The downspout nozzle, designated as DSN, connects to the roof drain piping and features an opening sized the same as the connecting pipe. A bronze bird screen slips fit directly into the downspout nozzle opening to prevent debris and pests from entering the drainage system. Elevations for the installation are coordinated per the architectural plans.
DOWNSPOUT NOZZLE OPENING. BRONZE BIRD SCREEN, SLIP FIT INTO FOR ELEVATIONS. SEE ARCHITECTURAL PLANS ROOFDRAIN PIPING. SIZE SAME AS CONNECTING (DOWNSPOUT NOZZLE) DSN DOWNSPOUT NOZZLE OPENING. BRONZE BIRD SCREEN, SLIP FIT INTO FOR ELEVATIONS. SEE ARCHITECTURAL PLANS ROOFDRAIN PIPING. SIZE SAME AS CONNECTING (DOWNSPOUT NOZZLE) DSN
