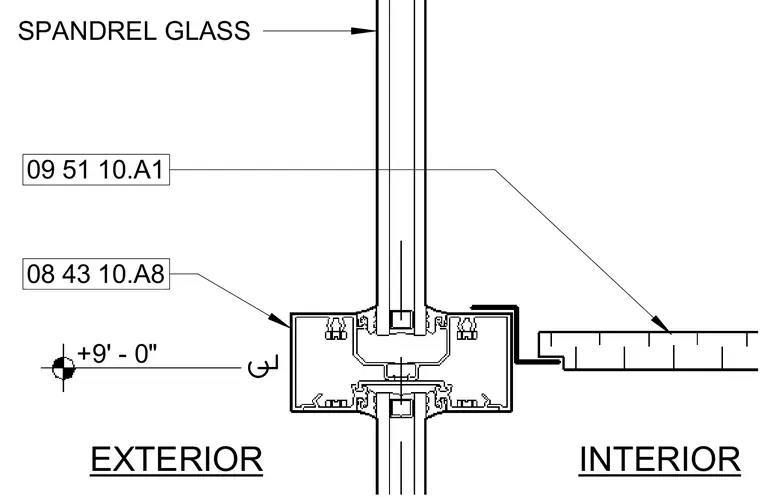

An interior ceiling panel assembly terminates at an exterior spandrel glass curtain wall mullion located at an elevation of plus nine feet. The acoustical ceiling tile abuts the aluminum framing member via an edge trim profile. Spandrel glass panels extend vertically above and below the horizontal mullion section.
