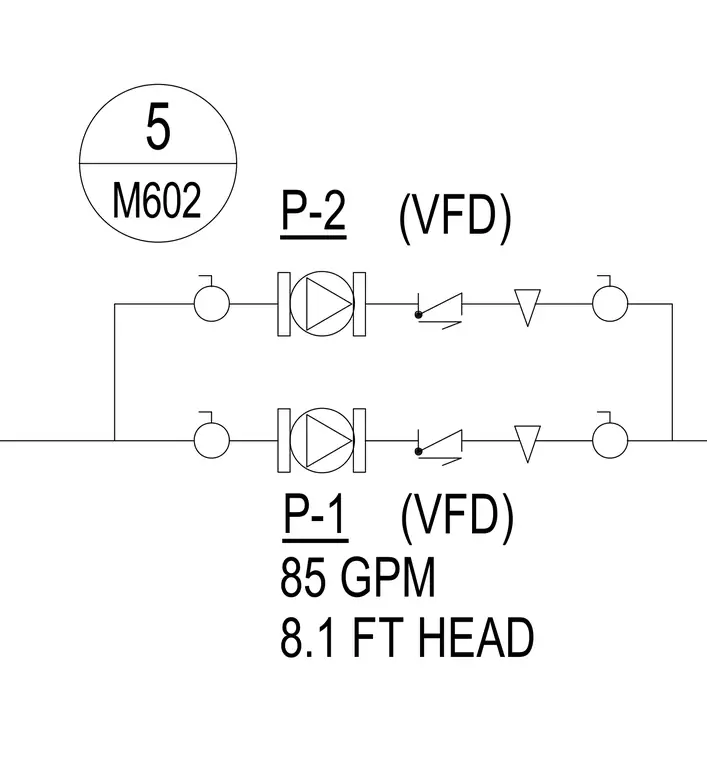

Parallel circulating pumps P-1 and P-2 equipped with variable frequency drives are arranged in a parallel piping configuration. Each pump branch includes isolation valves, check valves, and strainers to facilitate maintenance and flow control. The system is designed to deliver 85 gallons per minute at 8.1 feet of head.
