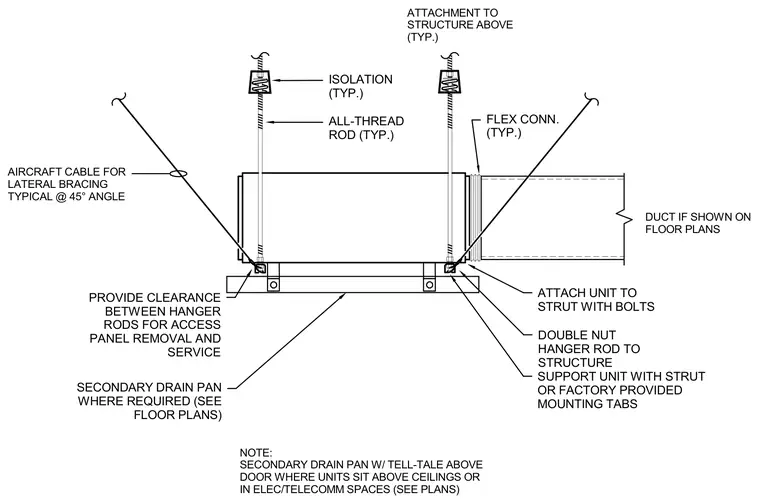

Suspended fan coil unit mounting assembly supported by all-thread hanger rods with vibration isolators attached to the structure above. The unit is supported on unistrut channels or factory mounting tabs, secured with bolts, and double-nutted at the hanger rods. Flexible duct connections attach to the unit, and diagonal aircraft cables at a 45-degree angle provide lateral seismic or wind bracing. Clearance is maintained around hanger rods for access panel removal and servicing, with secondary drain pans and tell-tales installed where units are located above ceilings or in electrical and telecommunications spaces.
FLEX CONN. (TYP.) ISOLATION (TYP.) ALL-THREAD ROD (TYP.) PROVIDE CLEARANCE BETWEEN HANGER RODS FOR ACCESS PANEL REMOVAL AND SERVICE ATTACH UNIT TO STRUT WITH BOLTS DOUBLE NUT HANGER ROD TO STRUCTURE SUPPORT UNIT WITH STRUT OR FACTORY PROVIDED MOUNTING TABS SECONDARY DRAIN PAN WHERE REQUIRED (SEE FLOOR PLANS) ATTACHMENT TO STRUCTURE ABOVE (TYP.) AIRCRAFT CABLE FOR LATERAL BRACING TYPICAL @ 45° ANGLE DUCT IF SHOWN ON FLOOR PLANS NOTE: SECONDARY DRAIN PAN W/ TELL-TALE ABOVE DOOR WHERE UNITS SIT ABOVE CEILINGS OR IN ELEC/TELECOMM SPACES (SEE PLANS)
