One-inch wide by eighteen-gauge steel strap hangers support the HVAC duct at eight-foot intervals. Number ten by three-quarter-inch self-tapping cadmium-plated sheet metal screws anchor the straps to the duct sides and bottom. All straps must remain tight against the duct and support members with pop rivets strictly prohibited.

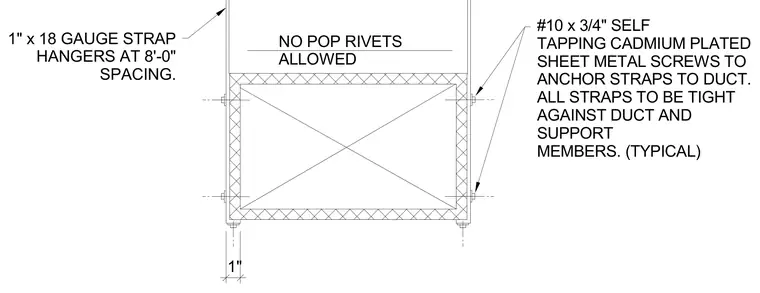

1" NO POP RIVETS ALLOWED 1" x 18 GAUGE STRAP HANGERS AT 8'-0" SPACING. #10 x 3/4" SELF TAPPING CADMIUM PLATED SHEET METAL SCREWS TO ANCHOR STRAPS TO DUCT. ALL STRAPS TO BE TIGHT AGAINST DUCT AND SUPPORT MEMBERS. (TYPICAL)
