Mechanical · M-WPG6N

Air Handling Unit Schedule and Layout

About this detail

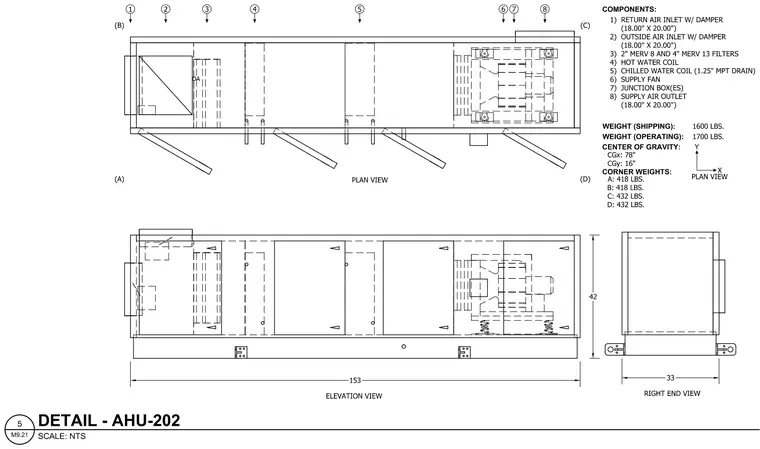

This drawing outlines the plan, elevation, and right end views of an air handling unit measuring 153 inches long by 33 inches wide by 42 inches high. Internal components include a return air inlet with damper, outside air inlet with damper, 2-inch MERV 8 and 4-inch MERV 13 filters, hot water coil, chilled water coil with a 1.25-inch MPT drain, supply fan, junction boxes, and a supply air outlet, all sized at 18 inches by 20 inches. Shipping weight is 1,600 pounds, operating weight is 1,700 pounds, and center of gravity coordinates are located at 78 inches on the X-axis and 16 inches on the Y-axis. Corner weights are designated as 418 pounds for corners A and B, and 432 pounds for corners C and D.
