Chilled Water Coil Piping Schematic and Connections

Elements

About this detail

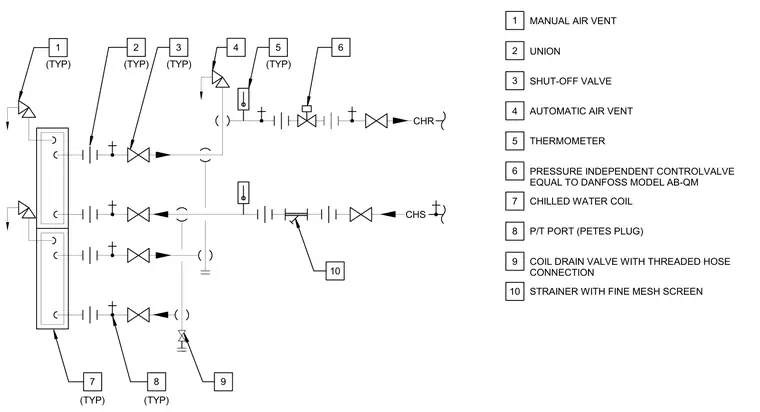

This chilled water coil piping diagram details the connection arrangement for air-cooled chiller systems. The assembly includes a chilled water coil connected to chilled water supply and chilled water return lines. Inline components comprise unions, shut-off valves, automatic and manual air vents, thermometers, and pressure independent control valves equal to Danfoss model AB-QM. Additional hardware features pressure/temperature ports, strainers with fine mesh screens, and coil drain valves with threaded hose connections.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
