Pump Connection Detail

Materials

Concrete Steel

Elements

Stairs Roofs Floors / Slabs Site / Paving Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Bolted Connection

About this detail

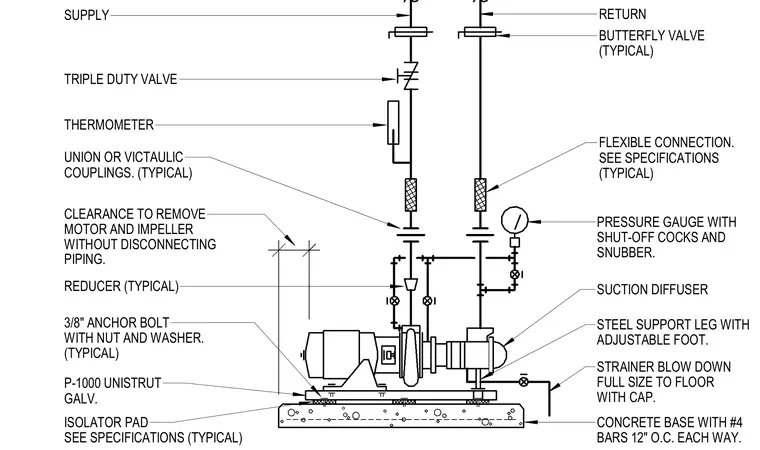

An inline mechanical pump assembly rests on a concrete housekeeping pad reinforced with number four bars spaced at twelve inches on center each way. An isolator pad sits beneath galvanized P-1000 Unistrut framing secured by three-eighth-inch anchor bolts with nuts and washers. The pump features steel support legs with adjustable feet, a suction diffuser, and a strainer blow down extending full size to the floor with a cap. Supply and return lines include flexible connections per specifications, union or Victaulic couplings, reducers, thermometers, triple duty valves, butterfly valves, and pressure gauges with shut-off cocks and snubbers. Ample clearance is provided to remove the motor and impeller without disconnecting the piping.
