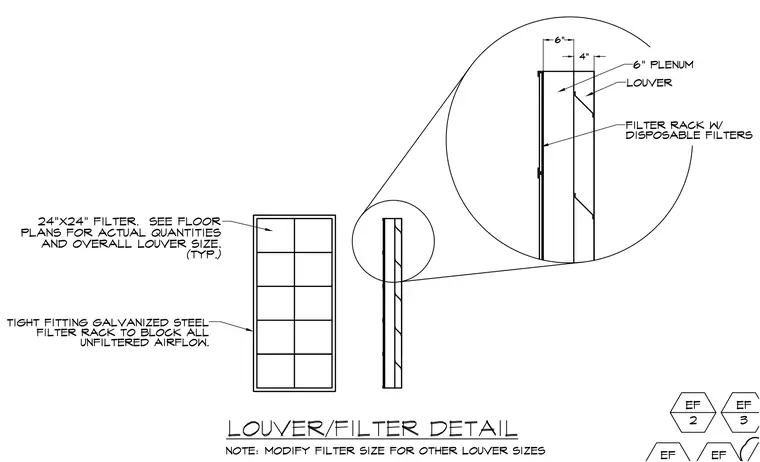

The assembly features a tight fitting galvanized steel filter rack designed to block all unfiltered airflow behind the louver. A twenty-four by twenty-four inch filter is specified typically, with overall quantities and louver sizes coordinated per floor plans. A six-inch plenum connects to the louver assembly with specified dimensional clearances.
