Mechanical · M-WHD9N

Bypass Valve (Normally Closed)

Elements

Walls Floors / Slabs Drainage Connections / Plates Roof / Floor Openings

About this detail

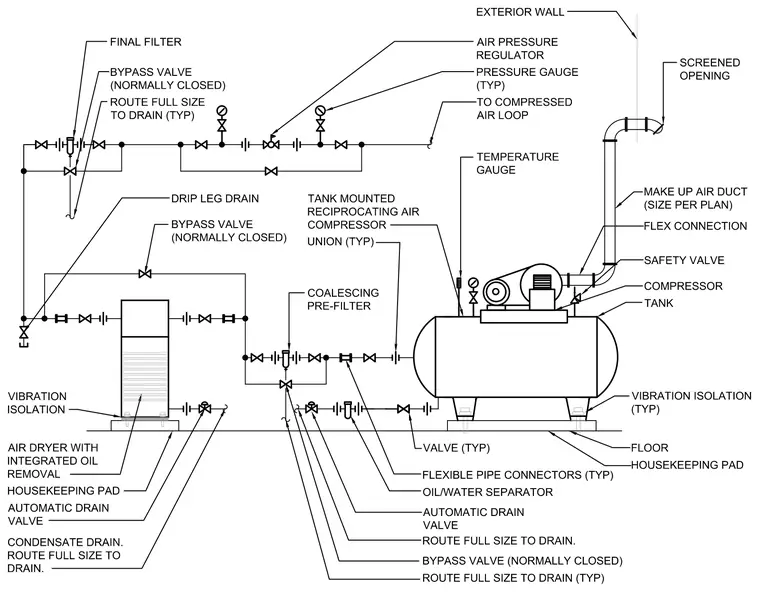

A tank-mounted reciprocating air compressor is anchored to a concrete floor via housekeeping pads with typical floor vibration isolation. The compressor feeds into a compressed air loop through a system equipped with flexible pipe connectors, unions, valves, a coalescing pre-filter, an oil-water separator, an air dryer with integrated oil removal, and a final filter. Bypass valves normally closed are installed around the filtration equipment to allow maintenance isolation. Drip leg drains, automatic drain valves, and condensate drains route full size to the drain. An air pressure regulator, pressure gauge, and temperature gauge monitor system conditions. A makeup air duct with a safety valve and flex connection extends through a screened opening in the exterior wall.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
