A sheet metal duct as specified connects to a main duct via a conical tap set at forty-five degrees. A locking quadrant volume damper is installed in the round branch duct above the tap. The takeoff dimensions maintain a minimum clearance sized at one-third the width or six inches minimum. Lateral takeoffs are used unless otherwise noted on the plans for supply, return, or exhaust air flow configurations.

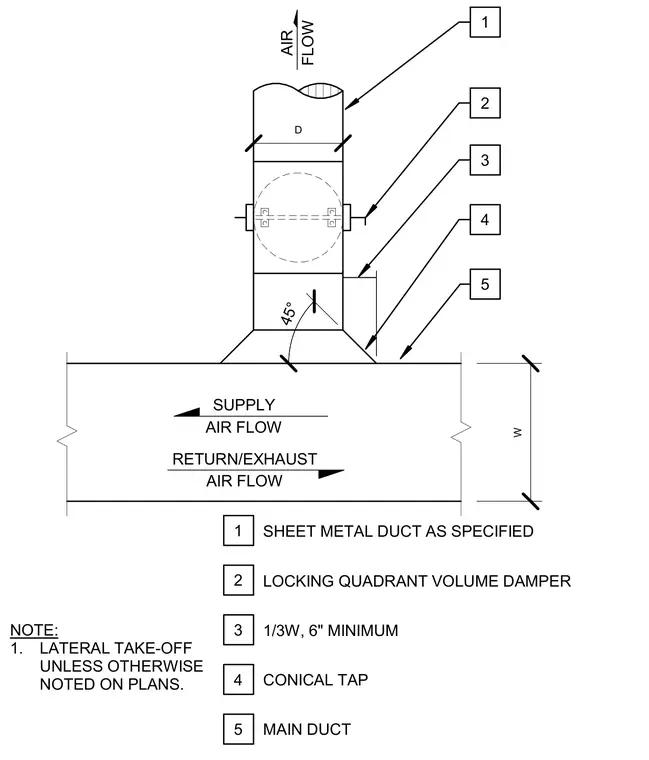

LOCKING QUADRANT VOLUME DAMPER 1/3W, 6" MINIMUM SHEET METAL DUCT AS SPECIFIED CONICAL TAP MAIN DUCT 1 2 3 4 5 NOTE: 1. LATERAL TAKE-OFF UNLESS OTHERWISE NOTED ON PLANS. RETURN/EXHAUST AIR FLOW AIR FLOW SUPPLY FLOW AIR 1 2 3 4 5 W 45° D
