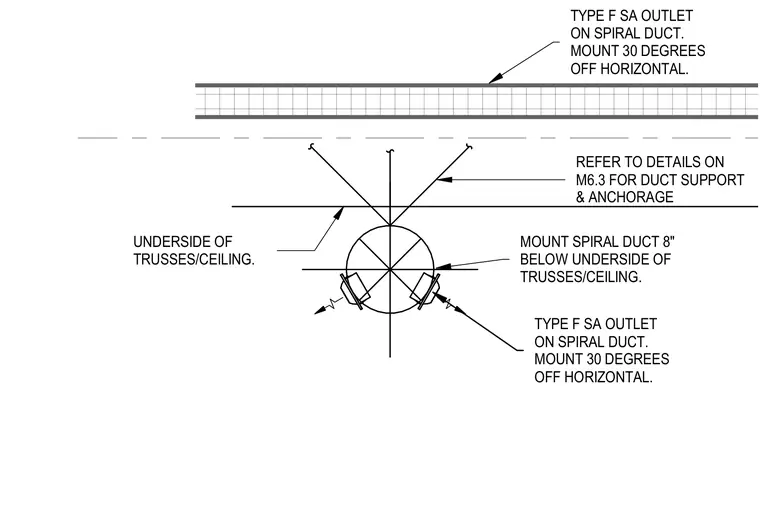

Type F supply air outlets are mounted onto a spiral duct at thirty degrees off horizontal. The spiral duct is positioned eight inches below the underside of the trusses and ceiling. Duct support and anchorage details are referenced on sheet M6.3.
TYPE F SA OUTLET ON SPIRAL DUCT. MOUNT 30 DEGREES OFF HORIZONTAL. MOUNT SPIRAL DUCT 8" BELOW UNDERSIDE OF TRUSSES/CEILING. TYPE F SA OUTLET ON SPIRAL DUCT. MOUNT 30 DEGREES OFF HORIZONTAL. UNDERSIDE OF TRUSSES/CEILING. REFER TO DETAILS ON M6.3 FOR DUCT SUPPORT & ANCHORAGE
