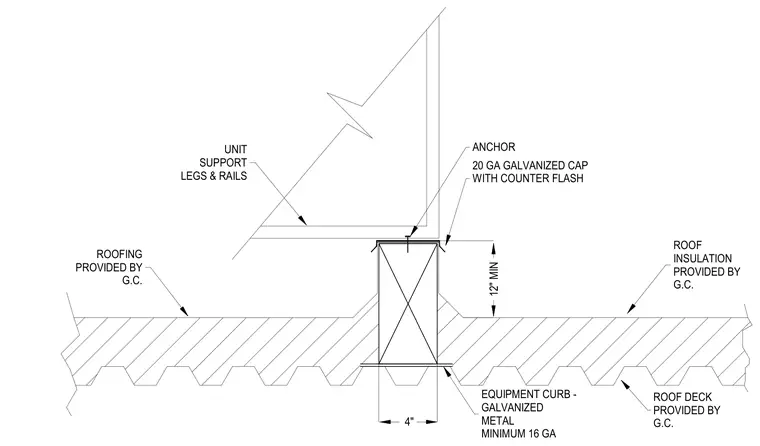

An equipment support rail rests on a four-inch-wide minimum sixteen-gauge galvanized metal equipment curb anchored to the roof deck. The curb is flanked by roof insulation and covered with roofing provided by the general contractor. A twenty-gauge galvanized cap with counter flashing sits atop the curb, fastened with an anchor beneath the unit support legs and rails.
ROOFING PROVIDED BY G.C. ROOF INSULATION PROVIDED BY G.C. UNIT SUPPORT LEGS & RAILS ANCHOR 20 GA GALVANIZED CAP WITH COUNTER FLASH 12" MIN ROOF DECK PROVIDED BY G.C. 4" EQUIPMENT CURB - GALVANIZED METAL MINIMUM 16 GA
