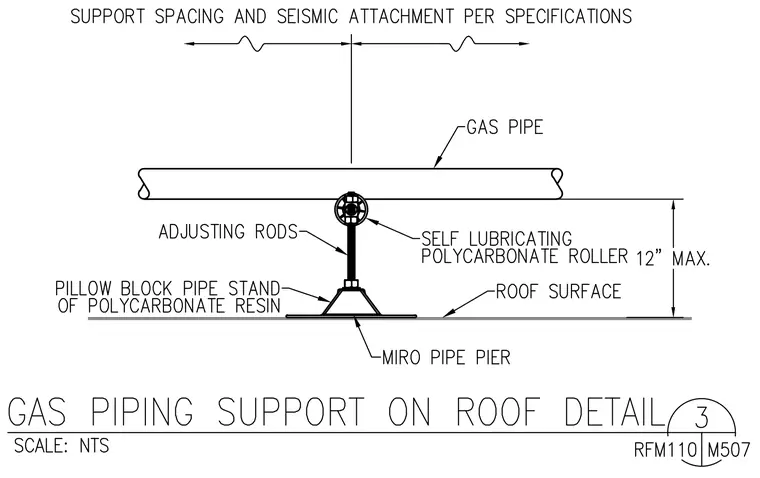

A gas pipe runs horizontally above a roof surface, supported by a pillow block pipe stand made of polycarbonate resin resting on a Miro pipe pier. The pipe rests on a self-lubricating polycarbonate roller connected to adjusting rods with a maximum height clearance of twelve inches. Support spacing and seismic attachment are provided per specifications.
