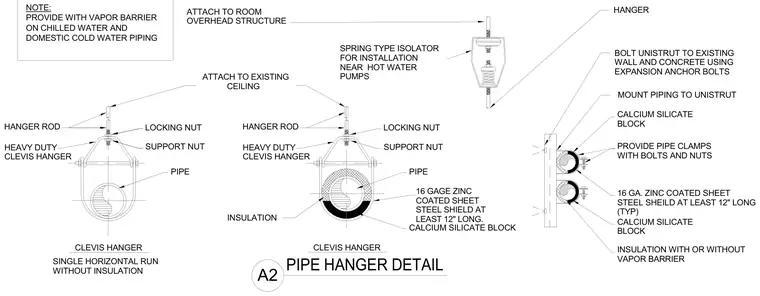

Suspended piping assemblies utilize threaded hanger rods secured with a support nut and locking nut to a heavy duty clevis hanger, attaching to the overhead room structure or existing ceiling. Insulated piping includes a calcium silicate block and a sixteen gauge zinc-coated sheet steel shield at least twelve inches long, with a vapor barrier provided on chilled water and domestic cold water piping. Wall-mounted piping utilizes Unistrut bolted to existing concrete walls using expansion anchor bolts, securing the pipes with pipe clamps, bolts and nuts, calcium silicate blocks, and protective steel shields. A spring type isolator is included for installation near hot water pumps.
PIPE HANGER DETAIL A2 HANGER ROD PIPE HANGER SUPPORT NUT LOCKING NUT CALCIUM SILICATE BLOCK 16 GA. ZINC COATED SHEET STEEL SHEILD AT LEAST 12" LONG (TYP) MOUNT PIPING TO UNISTRUT PROVIDE PIPE CLAMPS WITH BOLTS AND NUTS CALCIUM SILICATE BLOCK CALCIUM SILICATE BLOCK BOLT UNISTRUT TO EXISTING WALL AND CONCRETE USING EXPANSION ANCHOR BOLTS ATTACH TO ROOM OVERHEAD STRUCTURE SPRING TYPE ISOLATOR FOR INSTALLATION NEAR HOT WATER PUMPS CLEVIS HANGER INSULATION 16 GAGE ZINC COATED SHEET STEEL SHIELD AT LEAST 12" LONG. HEAVY DUTY CLEVIS HANGER HANGER ROD SUPPORT NUT LOCKING NUT HEAVY DUTY CLEVIS HANGER PIPE SINGLE HORIZONTAL RUN WITHOUT INSULATION CLEVIS HANGER ATTACH TO EXISTING CEILING INSULATION WITH OR WITHOUT VAPOR BARRIER NOTE: PROVIDE WITH VAPOR BARRIER ON CHILLED WATER AND DOMESTIC COLD WATER PIPING
