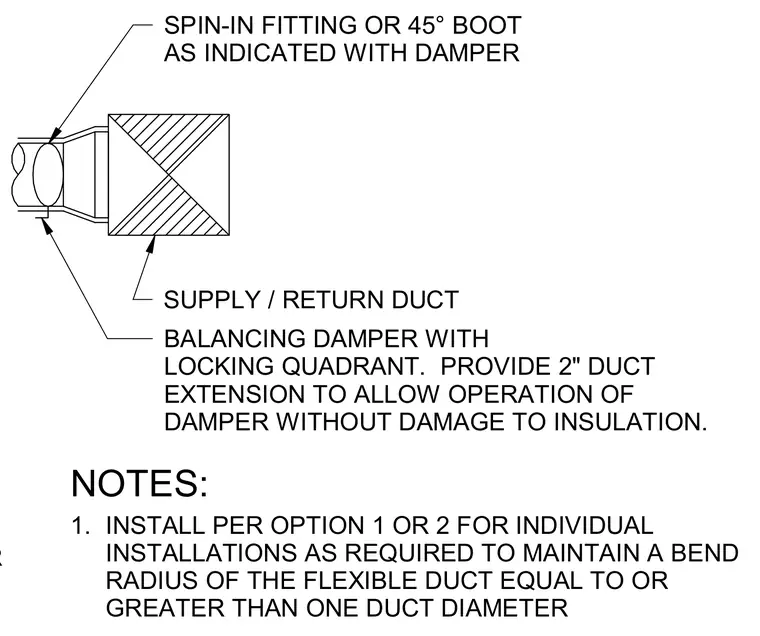

The branch duct connects to the main supply or return duct using a spin-in fitting or forty-five-degree boot equipped with a balancing damper and locking quadrant. A two-inch duct extension is provided to allow operation of the damper without damage to the exterior insulation. Flexible duct installations must maintain a bend radius equal to or greater than one duct diameter.
SPIN-IN FITTING OR 45° BOOT AS INDICATED WITH DAMPER SUPPLY / RETURN DUCT BALANCING DAMPER WITH LOCKING QUADRANT. PROVIDE 2" DUCT EXTENSION TO ALLOW OPERATION OF DAMPER WITHOUT DAMAGE TO INSULATION. SUPPLY / RETURN DIFFUSER INSTALL PER OPTION 1 OR 2 FOR INDIVIDUAL INSTALLATIONS AS REQUIRED TO MAINTAIN A BEND RADIUS OF THE FLEXIBLE DUCT EQUAL TO OR GREATER THAN ONE DUCT DIAMETER NOTES: 1.
