The existing reducing tee and hydrant pit lateral connecting to the hydrant pit are removed. Existing loop piping is machine cut outside of each existing reducing tee weld, and remaining pipe ends are machine beveled.

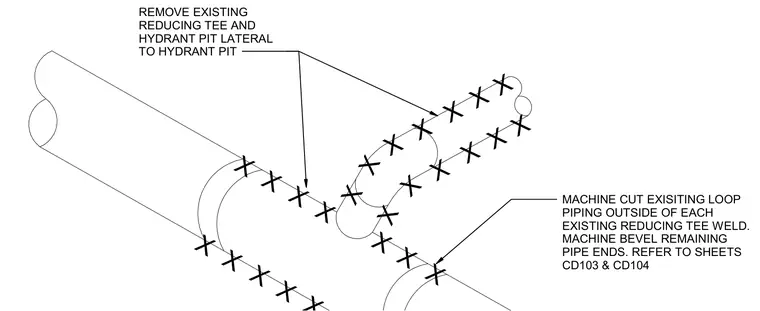

X X X X X X X X X X X X X X X X X X X X X X X X REMOVE EXISTING REDUCING TEE AND HYDRANT PIT LATERAL TO HYDRANT PIT MACHINE CUT EXISITING LOOP PIPING OUTSIDE OF EACH EXISTING REDUCING TEE WELD. MACHINE BEVEL REMAINING PIPE ENDS. REFER TO SHEETS CD103 & CD104
