Typical Hanger and Brace Connection Detail at Roof Deck

Materials

Steel

Elements

Roofs Bracing Anchors / Embeds Connections / Plates

Connections

Braced Frame Connection Bracing Connection Bolted Connection Embed Plate

About this detail

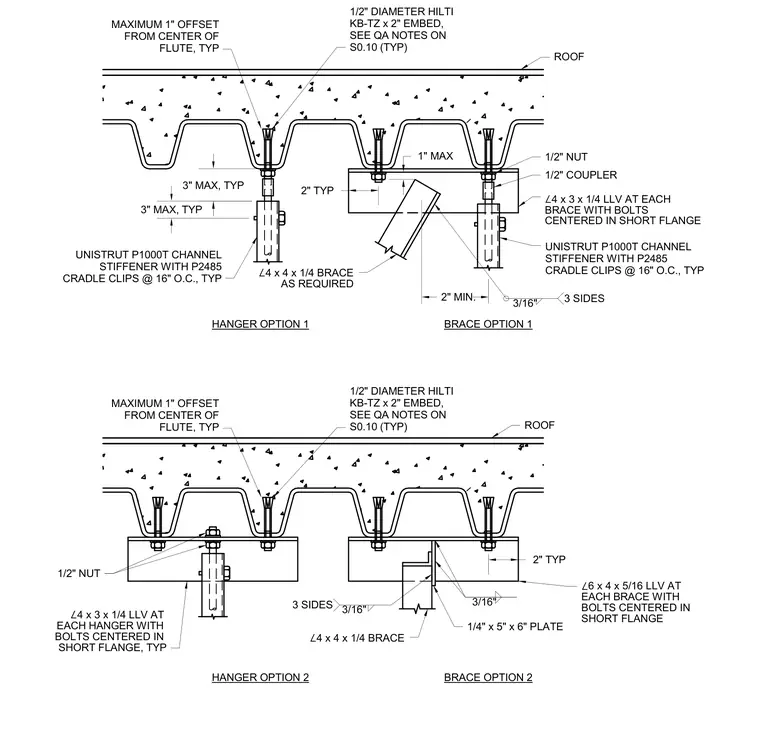

Roof-suspended mechanical hanger and seismic brace options anchored to a concrete-filled metal deck. Anchoring relies on half-inch diameter Hilti KB-TZ wedge anchors embedded two inches into the concrete slab. Suspended loads utilize Unistrut P1000T channel stiffeners fitted with P2485 cradle clips spaced at sixteen inches on center. Angle sections including 4x3x1/4, 4x4x1/4, and 6x4x5/16 long leg vertical angles connect braces with bolts centered in the short flange. Three-sixteenths inch fillet welds secure connection plates and angles on three sides where indicated.
