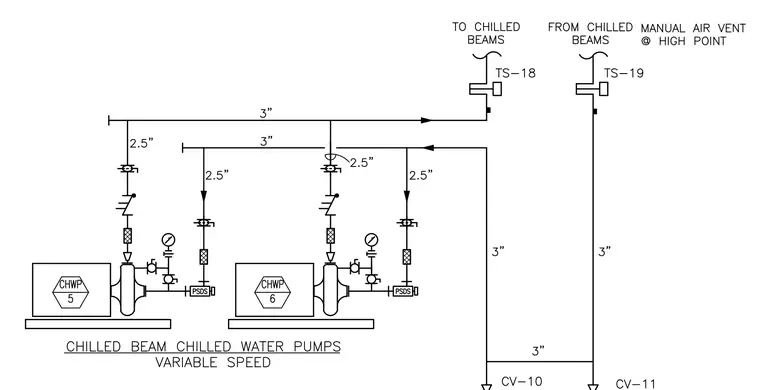

Variable speed chilled water pumps number 5 and 6 connect to a three-inch supply line and two-and-a-half-inch branches serving chilled beams. The system includes isolation valves, strainers, flexible connectors, pressure gauges, and control valves labeled TS-18, TS-19, CV-10, and CV-11. A manual air vent is provided at the high point.
