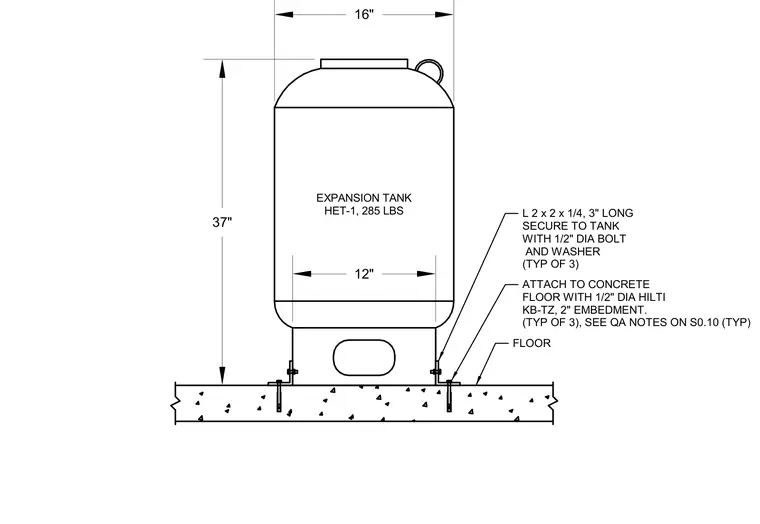

An expansion tank with a weight of 285 pounds and dimensions of 16 inches in diameter by 37 inches in height is mounted to a concrete floor using three steel angle clips. Each L 2 x 2 x 1/4 angle is 3 inches long and secured to the tank with a 1/2-inch diameter bolt and washer. The angles are anchored to the concrete floor using 1/2-inch diameter Hilti KB-TZ wedge anchors with a 2-inch embedment, following QA notes on sheet S0.10.
37" 12" 16" FLOOR ATTACH TO CONCRETE FLOOR WITH 1/2" DIA HILTI KB-TZ, 2" EMBEDMENT. L 2 x 2 x 1/4, 3" LONG SECURE TO TANK WITH 1/2" DIA BOLT AND WASHER (TYP OF 3) (TYP OF 3), SEE QA NOTES ON S0.10 (TYP) EXPANSION TANK HET-1, 285 LBS
