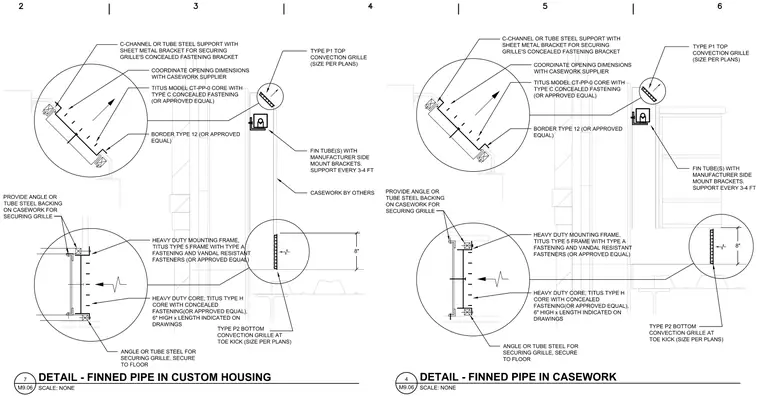

Finned tubes are supported by manufacturer side-mount brackets spaced every three to four feet behind casework provided by others. A C-channel or tube steel support with a sheet metal bracket secures the concealed fastening bracket for the top convection grille, sized per plans. A heavy-duty mounting frame with vandal-resistant fasteners holds the core, with angle or tube steel framing securing the assembly to the floor.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
