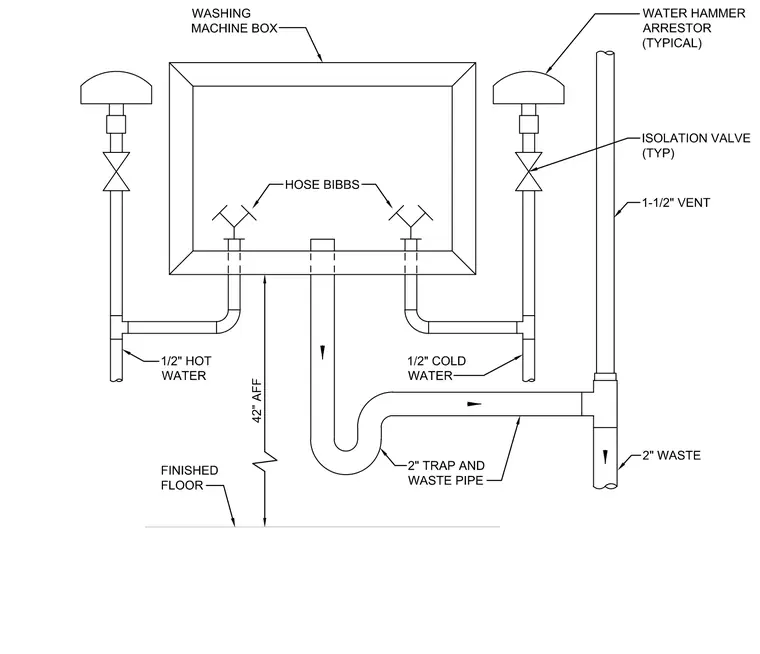

A recessed washing machine box is installed at forty-two inches above the finished floor, housing hose bibbs for water supply connections. One-half-inch hot and cold water supply lines feed into the box, each equipped with typical isolation valves and water hammer arrestors to mitigate hydraulic shock. A two-inch trap and waste pipe connects to the central drain, tying into a two-inch waste stack that extends with a one-half-inch vent.
WASHING MACHINE BOX WATER HAMMER ARRESTOR (TYPICAL) HOSE BIBBS 1-1/2" VENT 2" TRAP AND WASTE PIPE 2" WASTE 1/2" HOT WATER 42" AFF FINISHED FLOOR 1/2" COLD WATER ISOLATION VALVE (TYP)
