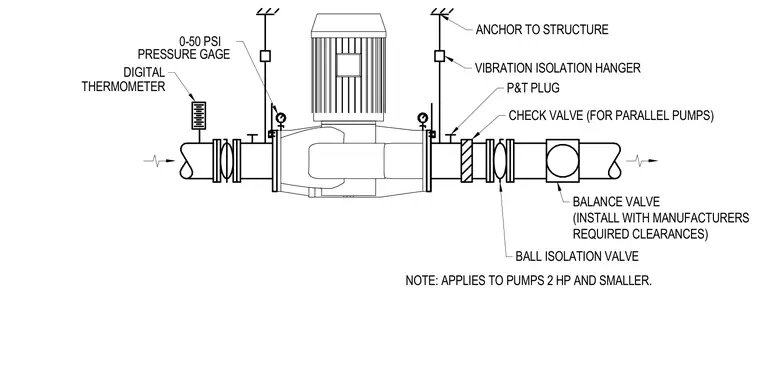

An in-line pump is suspended from the overhead structure using vibration isolation hangers and anchors. The piping assembly incorporates a digital thermometer, 0-50 PSI pressure gauges, ball isolation valves, pressure and temperature plugs, and a check valve for parallel pump configurations. A balance valve is installed downstream maintaining the manufacturer's required clearances. This configuration applies specifically to pumps of 2 horsepower and smaller.
DIGITAL THERMOMETER BALL ISOLATION VALVE P&T PLUG VIBRATION ISOLATION HANGER ANCHOR TO STRUCTURE NOTE: APPLIES TO PUMPS 2 HP AND SMALLER. 0-50 PSI PRESSURE GAGE CHECK VALVE (FOR PARALLEL PUMPS) BALANCE VALVE (INSTALL WITH MANUFACTURERS REQUIRED CLEARANCES)
