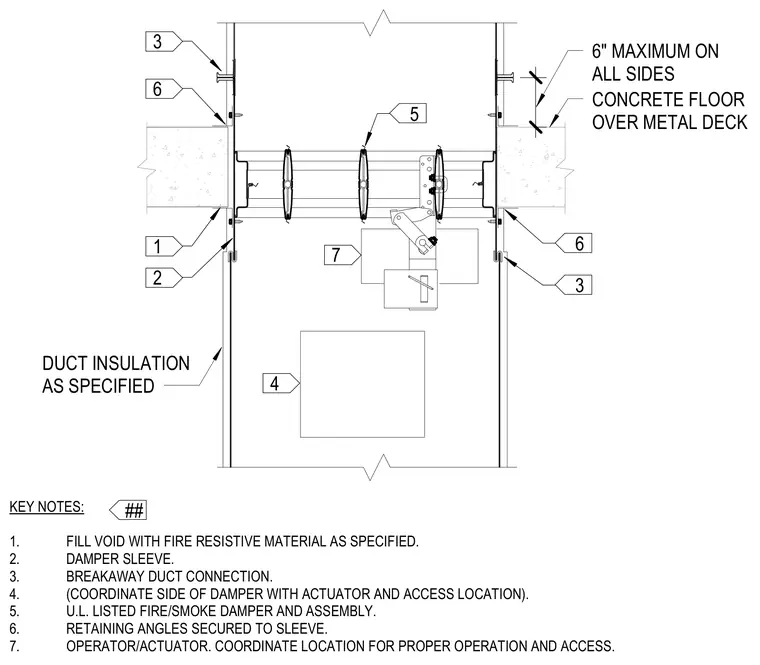

A U.L. listed fire and smoke damper assembly penetrates a concrete floor over metal deck with a maximum six-inch opening on all sides. The damper sleeve is secured using retaining angles fastened to the sleeve, with the void filled with fire resistive material. A breakaway duct connection joins the ductwork to the assembly, and an operator actuator is coordinated for proper operation and access.
0'-5 1/4" 4 7 5 6" MAXIMUM ON ALL SIDES CONCRETE FLOOR OVER METAL DECK 6 3 1 2 DUCT INSULATION AS SPECIFIED ## KEY NOTES: 1. FILL VOID WITH FIRE RESISTIVE MATERIAL AS SPECIFIED. 2. DAMPER SLEEVE. 3. BREAKAWAY DUCT CONNECTION. 4. (COORDINATE SIDE OF DAMPER WITH ACTUATOR AND ACCESS LOCATION). 5. U.L. LISTED FIRE/SMOKE DAMPER AND ASSEMBLY. 6. RETAINING ANGLES SECURED TO SLEEVE. 7. OPERATOR/ACTUATOR. COORDINATE LOCATION FOR PROPER OPERATION AND ACCESS. 6 3
