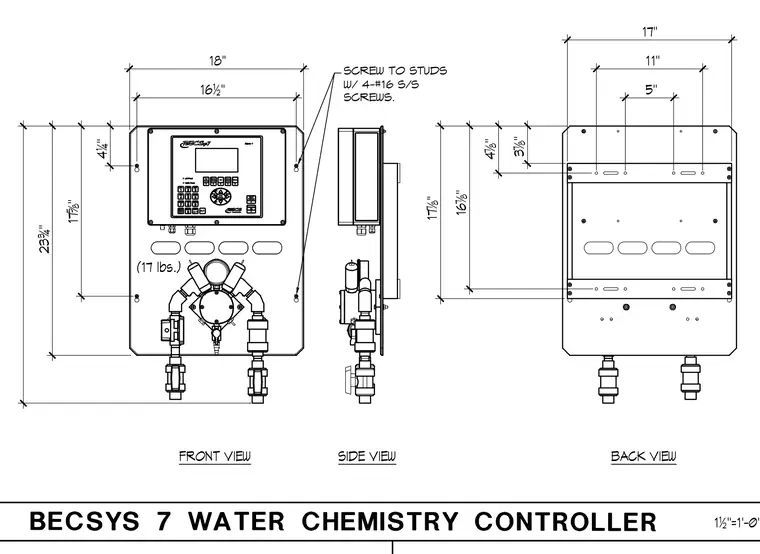

The Becsys 7 water chemistry controller unit is secured to wall studs using four number 16 stainless steel screws. The enclosure measures 23-3/4 inches in height by 18 inches in width and weighs approximately 17 pounds. Piping and sensor connections extend from the bottom of the unit with integrated unions and valves. Mounting hole spacing is detailed across the front, side, and back elevation views.
1\''=1'-0'' 16\'' 18'' 23['' 17}'' 4|'' 16]'' 3]'' 4]'' 17]'' 11'' 17'' 5'' SIDE VIEW FRONT VIEW BACK VIEW SCREW TO STUDS SCREWS. W/ 4-#16 S/S (17 lbs.)
