These mechanical details illustrate hanger assemblies for both uninsulated and insulated pipes using Mason clevis type hangers with a clevis cross bolt and Mason adjustable swivel type hangers suspended from hanger rods. For insulated pipes, a protective shield is positioned between the insulation and the hanger to prevent crushing. Pipe sizes from one-half inch to four inches utilize three-eighths inch diameter rods, while sizes from five inches to eight inches require one-half inch diameter rods as specified in the hanger rod schedule. Structural attachment of the hanger rods is coordinated per sheet S921.

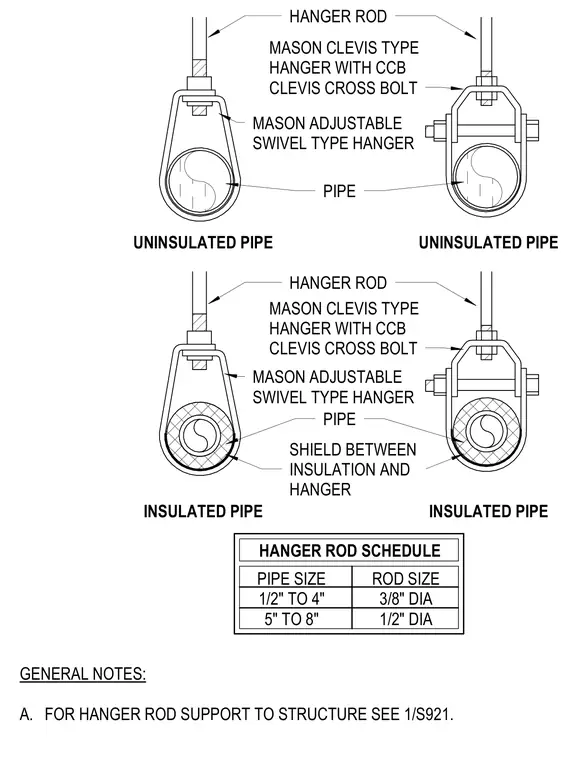

GENERAL NOTES: A. FOR HANGER ROD SUPPORT TO STRUCTURE SEE 1/S921. UNINSULATED PIPE UNINSULATED PIPE INSULATED PIPE INSULATED PIPE HANGER ROD SCHEDULE HANGER ROD HANGER ROD MASON CLEVIS TYPE HANGER WITH CCB CLEVIS CROSS BOLT MASON ADJUSTABLE SWIVEL TYPE HANGER PIPE PIPE MASON CLEVIS TYPE HANGER WITH CCB CLEVIS CROSS BOLT MASON ADJUSTABLE SWIVEL TYPE HANGER SHIELD BETWEEN INSULATION AND HANGER PIPE SIZE 1/2" TO 4" 5" TO 8" ROD SIZE 3/8" DIA 1/2" DIA
