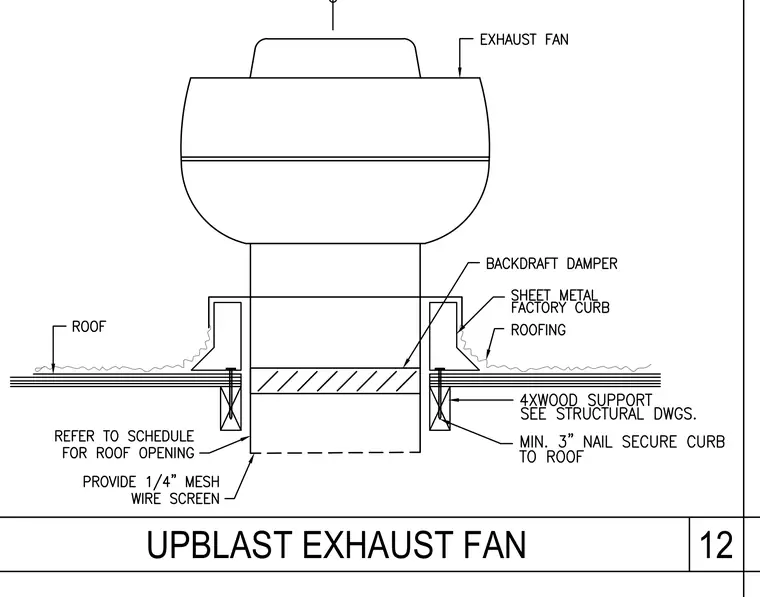

An upblast exhaust fan sits atop a sheet metal factory curb secured to the roof assembly with a minimum three-inch nail. A backdraft damper is installed within the throat of the curb above a four-inch by four-inch wood support sized per structural drawings. A one-quarter-inch mesh wire screen is provided at the bottom of the opening.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
