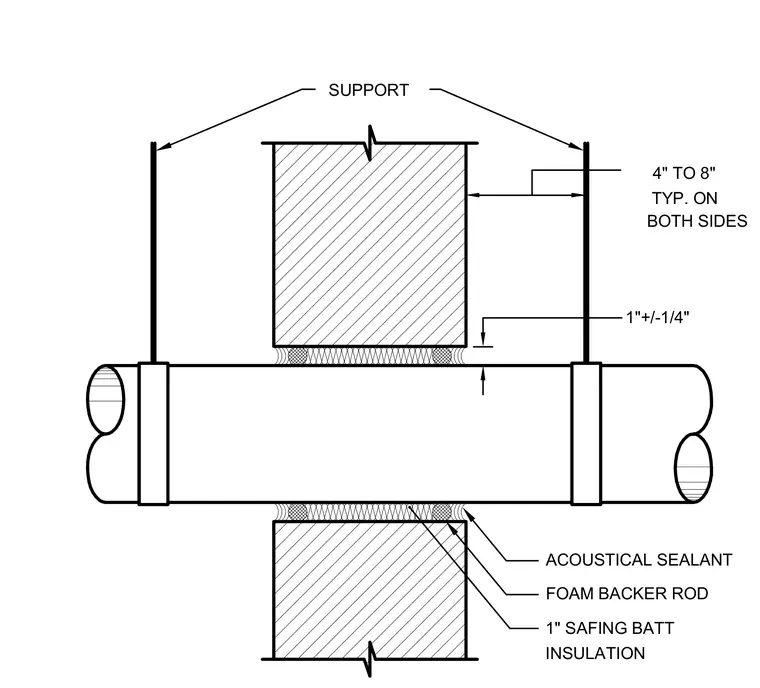

A duct penetrates a non-rated wall opening with a clearance of one inch plus or minus one quarter inch on both sides. The annular space is packed with one-inch safing batt insulation, backed by a foam backer rod, and finished with acoustical sealant on both sides. The duct is held in place by supports spaced four to eight inches typically.
INSULATION ACOUSTICAL SEALANT FOAM BACKER ROD 1" SAFING BATT SUPPORT TYP. ON 1"+/-1/4" BOTH SIDES 4" TO 8"
