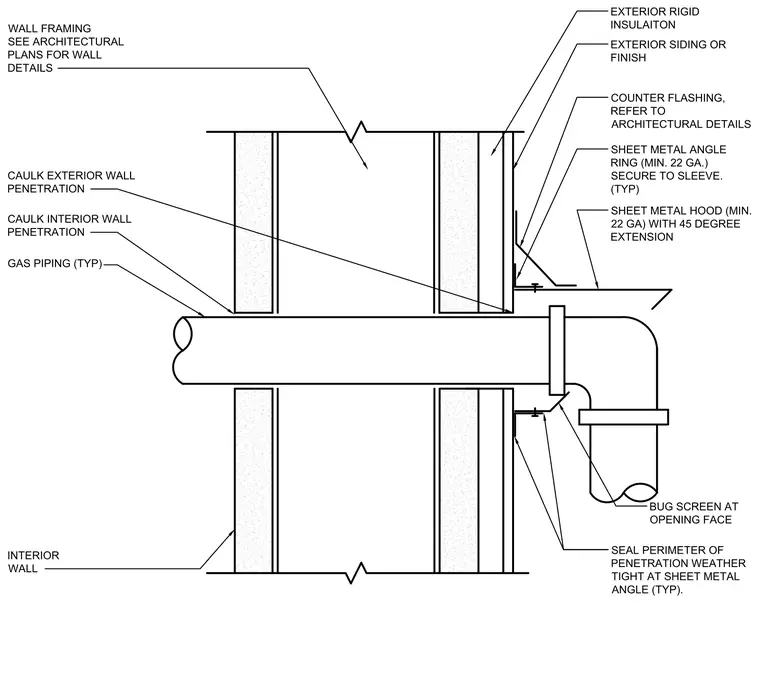

Gas piping penetrates an exterior wall framed with interior finishes, exterior rigid insulation, and exterior siding or finish. The interior wall penetration is sealed with caulk around the pipe. On the exterior side, a minimum twenty-two gauge sheet metal angle ring secures to the sleeve and the perimeter of the penetration is sealed weather tight. A minimum twenty-two gauge sheet metal hood with a forty-five degree extension and a bug screen at the opening face protects the penetration, supplemented by counter flashing referenced to architectural details.
WALL FRAMING SEE ARCHITECTURAL PLANS FOR WALL DETAILS INTERIOR WALL EXTERIOR RIGID INSULAITON EXTERIOR SIDING OR FINISH COUNTER FLASHING, REFER TO ARCHITECTURAL DETAILS SHEET METAL ANGLE RING (MIN. 22 GA.) SECURE TO SLEEVE. (TYP) SEAL PERIMETER OF PENETRATION WEATHER TIGHT AT SHEET METAL ANGLE (TYP). GAS PIPING (TYP) CAULK INTERIOR WALL PENETRATION SHEET METAL HOOD (MIN. 22 GA) WITH 45 DEGREE EXTENSION BUG SCREEN AT OPENING FACE CAULK EXTERIOR WALL PENETRATION
