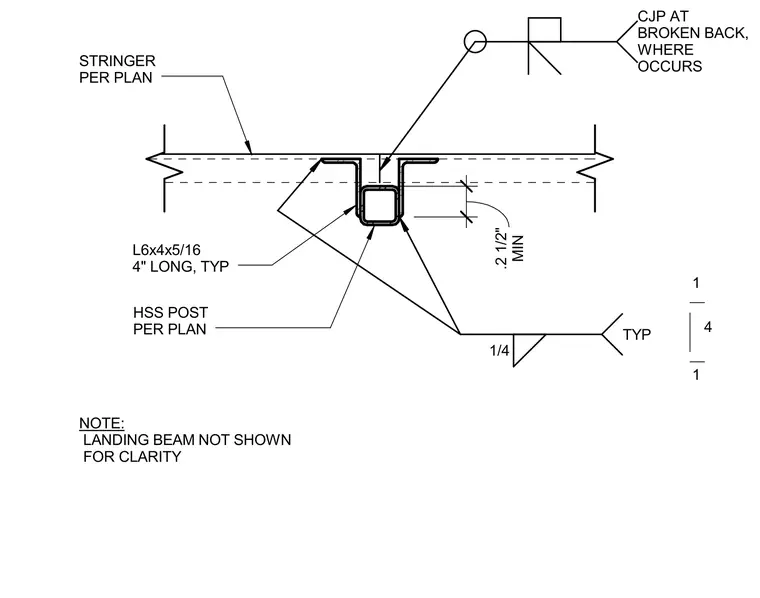

An HSS post sized per plan connects to a stair stringer sized per plan using two L6x4x5/16 angles four inches long typically. A quarter-inch fillet weld secures the components typically, with a minimum two-and-a-half-inch complete joint penetration weld at the broken back where it occurs. A note indicates that the landing beam is omitted for clarity.
STRINGER PER PLAN HSS POST PER PLAN 1/4 TYP 1 1 4 L6x4x5/16 4" LONG, TYP NOTE: LANDING BEAM NOT SHOWN FOR CLARITY MIN .2 1/2" CJP AT BROKEN BACK, WHERE OCCURS
