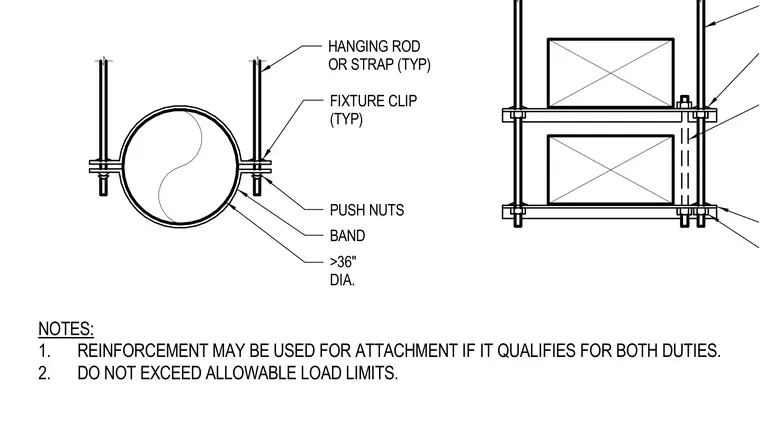

Ducts greater than thirty-six inches in diameter are suspended using hanging rods or straps secured by typical fixture clips and push nuts around a support band. Reinforcement may be used for attachment if it qualifies for both duties, ensuring allowable load limits are not exceeded.
NOTES: 1. REINFORCEMENT MAY BE USED FOR ATTACHMENT IF IT QUALIFIES FOR BOTH DUTIES. 2. DO NOT EXCEED ALLOWABLE LOAD LIMITS. >36" DIA. HANGING ROD OR STRAP (TYP) FIXTURE CLIP (TYP) PUSH NUTS BAND
