A combination fire and smoke damper connects to a 120V single-phase electrical supply and features a code-approved smoke detector mounted directly within the ductwork. The smoke detector is factory-installed or provided by the fire alarm contractor, utilizing factory wiring connections. A remote annunciator for the smoke detectors is supplied by the fire and life safety contractor.

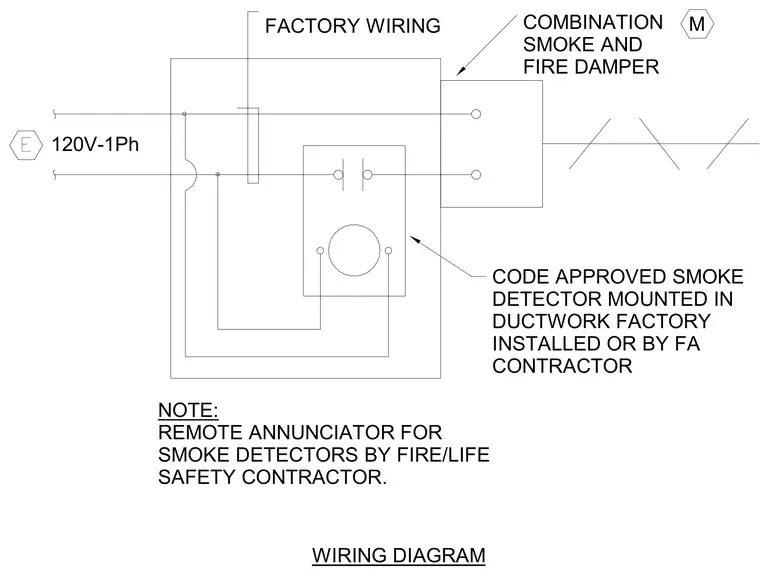

M E COMBINATION SMOKE AND FIRE DAMPER CODE APPROVED SMOKE DETECTOR MOUNTED IN DUCTWORK FACTORY INSTALLED OR BY FA CONTRACTOR FACTORY WIRING 120V-1Ph NOTE: REMOTE ANNUNCIATOR FOR SMOKE DETECTORS BY FIRE/LIFE SAFETY CONTRACTOR. WIRING DIAGRAM
