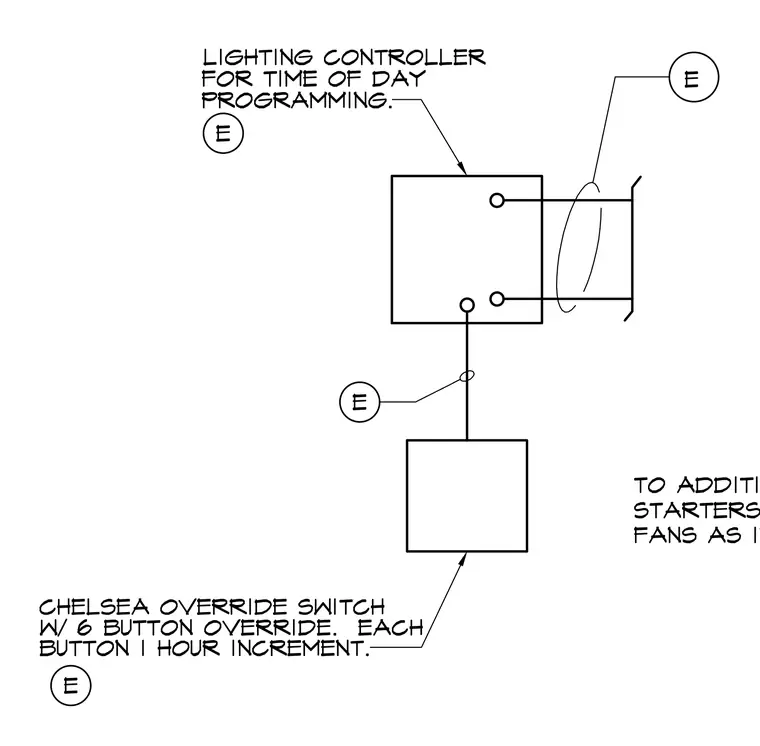

A lighting controller for time of day programming connects to a Chelsea override switch with six buttons providing one-hour increments per button. Wiring pathways are designated with electrical tags connecting the controller, switch, and additional starters or fans.
