The domestic water service line enters through a six-inch cold water pipe supported by typical wall supports and unions, passing through a water meter and a six-inch reduced pressure principle backflow preventer with a one-and-a-half-inch bypass. A relief valve set at one hundred psig discharges fully to a floor drain via an air gap. The system includes an expansion tank, which must be charged to match site water pressure prior to connection, along with a three-quarter-inch capped drain, a three-quarter-inch drain valve, and a hose end with a vacuum breaker.

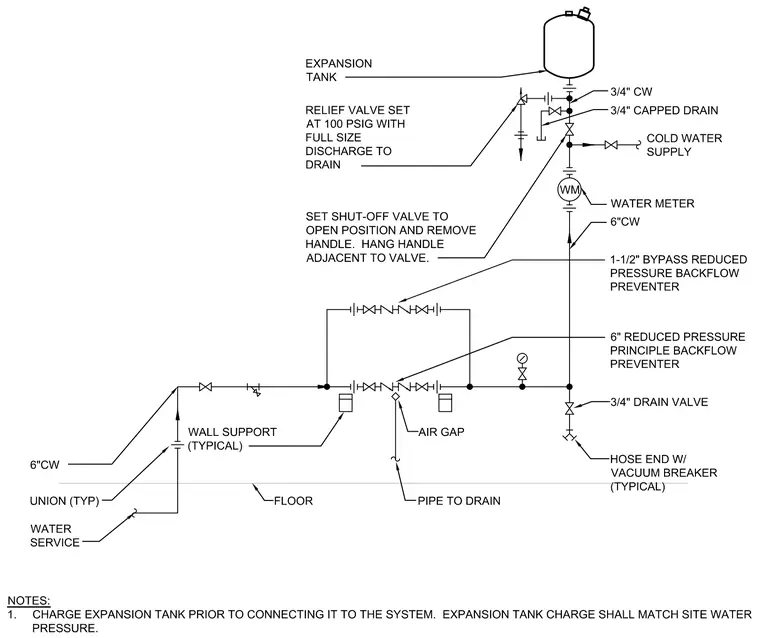

WATER SERVICE UNION (TYP) WALL SUPPORT (TYPICAL) COLD WATER SUPPLY FLOOR PIPE TO DRAIN AIR GAP HOSE END W/ VACUUM BREAKER (TYPICAL) 3/4" DRAIN VALVE 6" REDUCED PRESSURE PRINCIPLE BACKFLOW PREVENTER RELIEF VALVE SET AT 100 PSIG WITH FULL SIZE DISCHARGE TO DRAIN EXPANSION TANK 6"CW WM 6"CW SET SHUT-OFF VALVE TO OPEN POSITION AND REMOVE HANDLE. HANG HANDLE ADJACENT TO VALVE. 3/4" CW 1-1/2" BYPASS REDUCED PRESSURE BACKFLOW PREVENTER 3/4" CAPPED DRAIN WATER METER NOTES: 1. CHARGE EXPANSION TANK PRIOR TO CONNECTING IT TO THE SYSTEM. EXPANSION TANK CHARGE SHALL MATCH SITE WATER PRESSURE.
