Ceiling-hung equipment is suspended by vertical support rods fitted with rod stiffeners and secured with support members. Diagonal cable braces extend outward at angles between thirty and ninety degrees to provide transverse and longitudinal lateral restraint. The cables connect between the structure and the braced mechanical components using standard hardware connections.

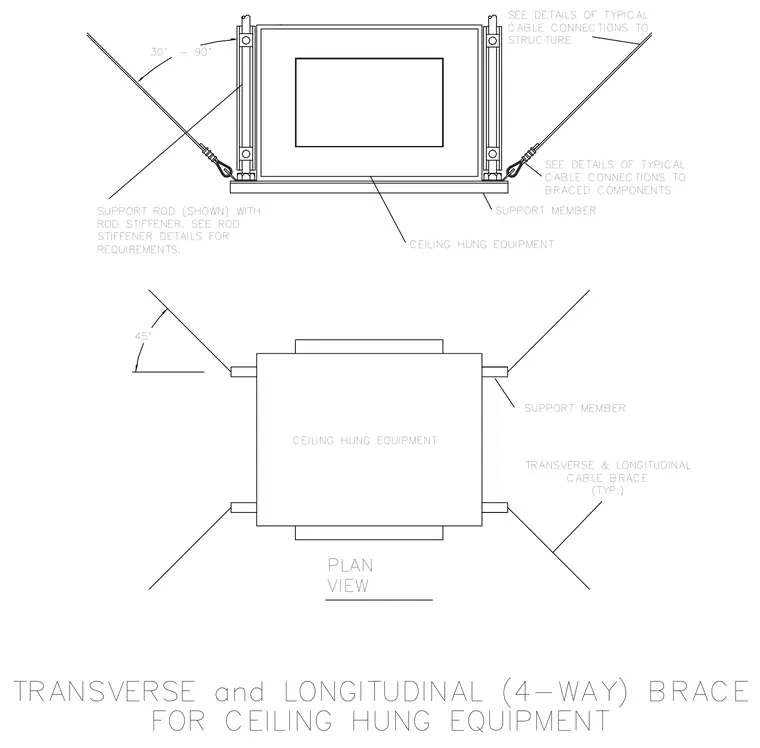

TRANSVERSE and LONGITUDINAL (4-WAY) BRACE FOR CEILING HUNG EQUIPMENT PLAN VIEW CEILING HUNG EQUIPMENT CEILING HUNG EQUIPMENT SUPPORT ROD (SHOWN) WITH ROD STIFFENER. SEE ROD 45° REQUIREMENTS. STIFFENER DETAILS FOR TRANSVERSE & LONGITUDINAL (TYP.) CABLE BRACE SUPPORT MEMBER SUPPORT MEMBER 30° - 90° SEE DETAILS OF TYPICAL CABLE CONNECTIONS TO SEE DETAILS OF TYPICAL CABLE CONNECTIONS TO BRACED COMPONENTS STRUCTURE
