Mechanical · M-VE2X3

Volume Pump Piping and Valve Assembly Details

Materials

weld

Elements

Floors / Slabs Drainage Connections / Plates

Connections

Welded Connection

About this detail

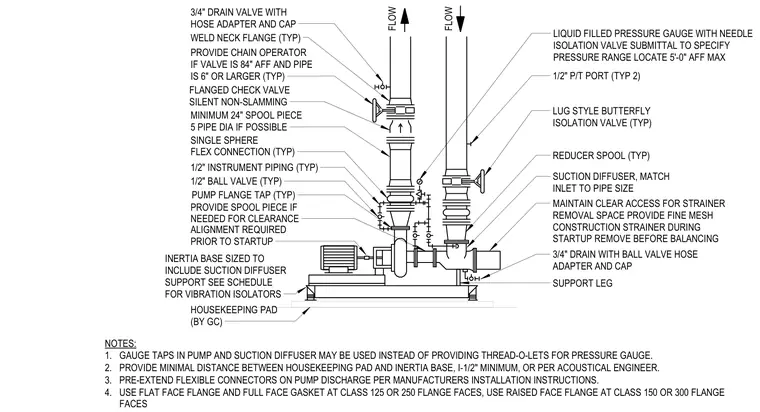

A volume pump installation is mounted on an inertia base over a concrete housekeeping pad, complete with vibration isolators. The suction side incorporates a strainer, support leg, lug style butterfly isolation valve, and a reducer spool with a pressure/temperature port. The discharge piping includes a single sphere flexible connection, a minimum twenty-four-inch spool piece, a silent non-slamming flanged check valve, and weld neck flanges. Instrumentation includes liquid-filled pressure gauges with needle isolation valves, half-inch instrument piping, ball valves, and drain valves with hose adapters and caps. Alignment is required prior to startup, with specific provisions for flat or raised face flanges depending on the pressure class.
