Slab Heating Piping Schematic

Materials

Elements

About this detail

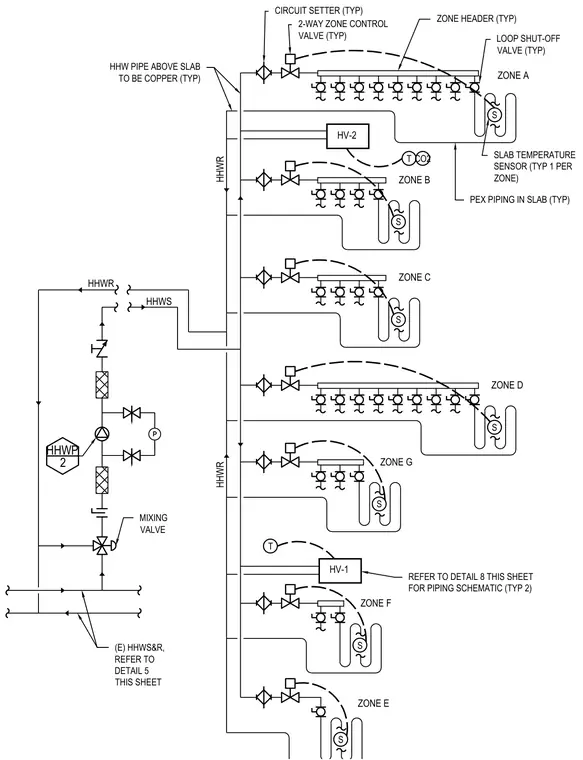

This hydronic heating schematic details the piping layout and zone distribution for radiant slab heating systems. Hot water supply and return lines connect through a mixing valve and circulation pump assembly, feeding multiple thermal zones via zone headers. Each individual zone incorporates a two-way zone control valve, circuit setter, loop shut-off valves, and embedded cross-linked polyethylene piping within the concrete slab. Temperature sensors and thermostats regulate the multi-zone loops, with copper piping utilized for above-slab runs.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
