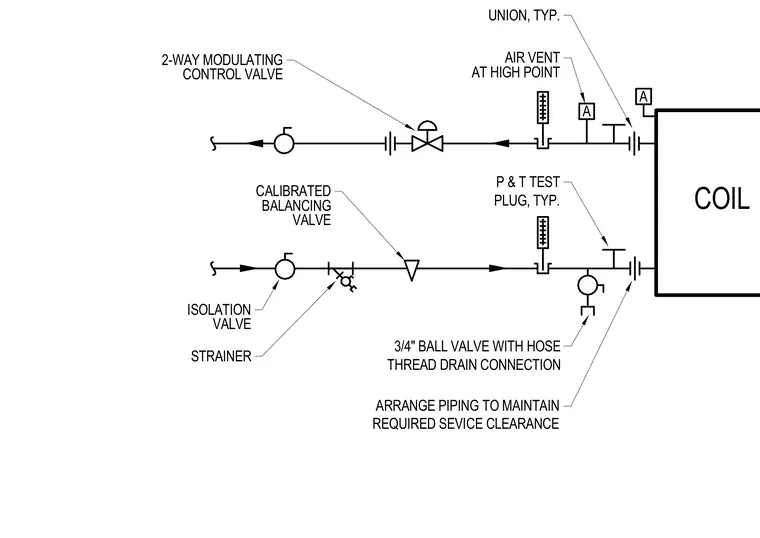

An air handler coil piping arrangement features a 2-way modulating control valve and a calibrated balancing valve on the supply and return lines. Isolation valves and a strainer are included on the piping loop for maintenance access. Pressure and temperature test plugs are placed typically along with an air vent at the high point. A three-quarter-inch ball valve with a hose thread drain connection provides drainage capability. Unions are installed typically near the coil connections, and piping is arranged to maintain required service clearances.
A A COIL AT HIGH POINT AIR VENT UNION, TYP. P & T TEST PLUG, TYP. REQUIRED SEVICE CLEARANCE ARRANGE PIPING TO MAINTAIN THREAD DRAIN CONNECTION 3/4" BALL VALVE WITH HOSE VALVE ISOLATION STRAINER VALVE BALANCING CALIBRATED CONTROL VALVE 2-WAY MODULATING
