A sheet metal sound boot connects directly to a return air grille using two sheet metal screws on each side. The interior of the sound boot features one-inch acoustical duct liner for noise attenuation. The boot maintains a minimum throat depth of six inches, with offset dimensions of one-half the grille width and a twelve-inch minimum clearance. Hangers support the sound boot directly from the overhead building structure.

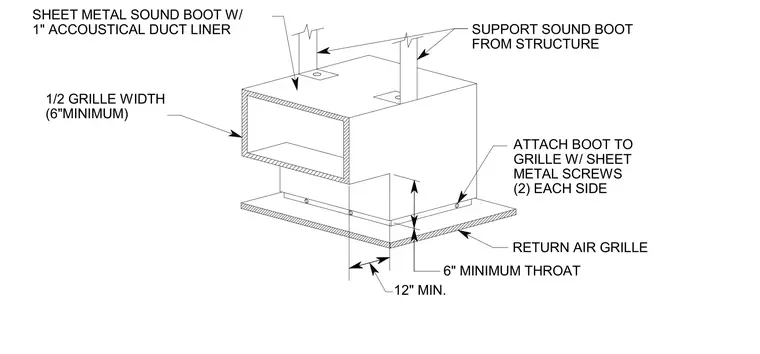

SHEET METAL SOUND BOOT W/ 1" ACCOUSTICAL DUCT LINER 1/2 GRILLE WIDTH (6"MINIMUM) RETURN AIR GRILLE 6" MINIMUM THROAT 12" MIN. SUPPORT SOUND BOOT FROM STRUCTURE ATTACH BOOT TO GRILLE W/ SHEET METAL SCREWS (2) EACH SIDE
