Mechanical · M-V88SK

Hot Water Coil Piping Detail

Elements

Beams Floors / Slabs Drainage Connections / Plates

About this detail

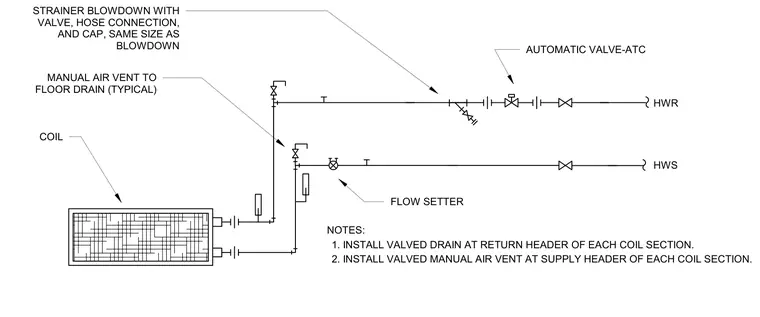

Hot water supply (HWS) and hot water return (HWR) piping connects to the heating coil with an automatic temperature control valve, flow setter, and strainer blowdown with a valve, hose connection, and cap. A valved manual air vent connects to the supply header and routes to a floor drain typically. A valved drain installs at the return header of each coil section per project notes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
