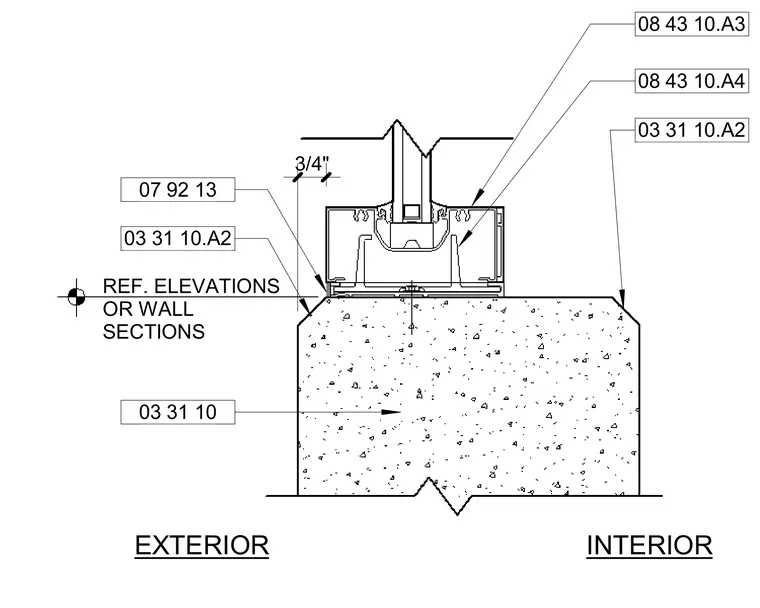

A storefront window sill is anchored atop a concrete substrate, separated by a three-quarter-inch dimensioned joint. Joint sealant is applied at the exterior junction. The assembly incorporates framing members referenced by specification sections for concrete and storefront construction.
EXTERIOR INTERIOR 03 31 10 03 31 10.A2 REF. ELEVATIONS OR WALL SECTIONS 03 31 10.A2 08 43 10.A4 08 43 10.A3 07 92 13 3/4"
