Flow Switch Detail

Materials

Elements

About this detail

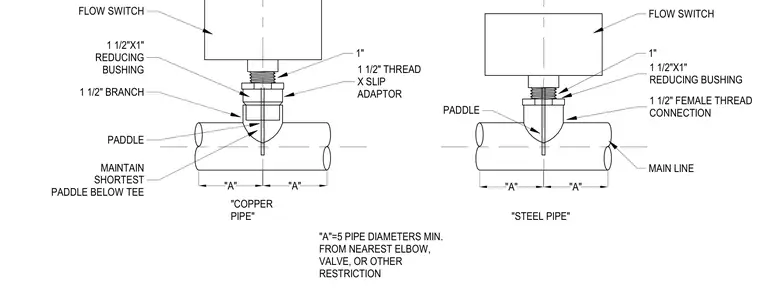

A flow switch connects to a main line via a one-inch connection, a one-and-a-half-inch by one-inch reducing bushing, and a one-and-a-half-inch branch or female thread connection. For copper pipe, a one-and-a-half-inch thread by slip adaptor is used. The paddle extends into the main line, maintaining the shortest paddle below the tee. The flow switch must be located a minimum of five pipe diameters from the nearest elbow, valve, or other restriction.
