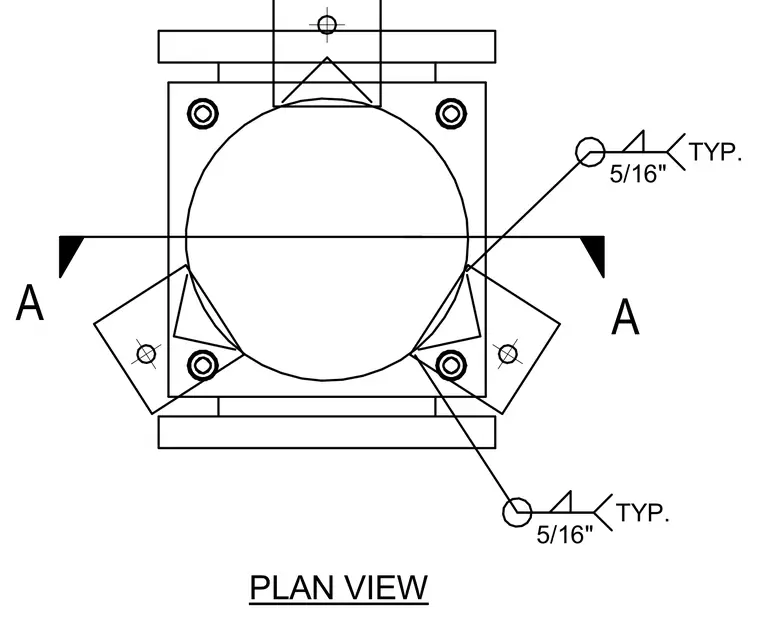

This plan view details a mechanical equipment support assembly utilizing structural flanges, mounting bolts, and angled gusset plates. Five-sixteenth inch typical fillet welds secure the gusset plates to the base assembly. Threaded fasteners are positioned symmetrically at the connection points.
A A TYP. 5/16" TYP. 5/16" PLAN VIEW
